Experience innovation with the V20 Pro HYPER Light Tower from Generac Mobile®. It’s the ‘ALL IN ONE’ lighting solution that combines over 20 years of industry expertise. Choose from battery, hybrid, or diesel power options and benefit from adjustable LED floodlights. With impressive lumens and versatile light source settings, it’s the future, present, and tradition all in one model.
Specifications
| TECHNICAL DATA | |||||
| Min. dimensions* (mm) | Length x Width x Height | 2245 x 1431 x 2424 | |||
| Max. dimensions* (mm) | Length x Width x Height | 3390 x 1714 x 8200 | |||
| Dry weight* (kg) | 1146 | ||||
| Battery type | AGM | ||||
| Engine model | Kubota Z482 | ||||
| Avg. sound pressure | dB(A) @ 7m | 0 – 58 | |||
| Dimmer switch Light intensity | Light intensity | 25% | 50% | 75% | 100% |
| Max. lamps power (W) | 4 x 60 | 4 x 120 | 4 x 180 | 4 x 240 | |
| Lamps type | Hyper LED | LED | LED | LED | |
| Max. total lumen (Lm) | 41040 | 76184 | 107668 | 139200 | |
| Max. illuminated area (m2) | 1500 | 2200 | 2700 | 3100 | |
| Battery recharging time (h) | 6:11 | 5:18 | 5:09 | 4:29 | |
| Running time – Battery mode (h) | 19:46 | 10:07 | 5:11 | 3:45 | |
| Running time – Generator mode (h) | 165 | 151 | 134 | 125 | |
| Running time – Hybrid mode (h) | 471 | 303 | 202 | 180 | |
| Mast lifting system | M: Manual / H: Hydraulic | H | |||
| Mast rotation (°) | 340 | ||||
| Wind speed resistance (km/h) | 110 | ||||
| Alternator | kVA/V/Hz | 5/230/50 – 5/240/60 | |||
| CEE inlet plug (external power) | A/V/Hz | 16/230/50 – 16/240/60 | |||
| Multipin inlet plug (solar kit) | √: Yes / ●: No | √ | |||
| Tank capacity (liters) | 100 (90 net) | ||||
| Liquid containment tank (110%) | √: Yes / ●: No | √ | |||
Description

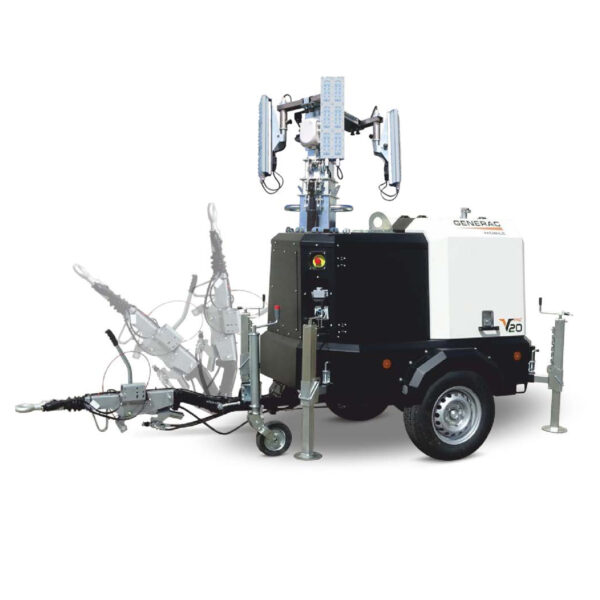

V20 Pro HYPER light tower
V20 PRO is not just a new lighting tower, but the real and only “ALL IN ONE” product!
It embodies all the innovations and new technologies that Generac Mobile® has developed in over 20 years at the top of the industry as manufacturer. We have brought together all the Rental needs, in one single product. Special version with Hyper LED floodlights.
- Diesel (Kubota) 2cyl
- Battery AGM with Victron Inverter
- 4 x 240w lamps LED (Hyper)
- 139,200 lumens
- Light Source options of 25% 50% 75% 100%
- 471 hours run time (25% light output Hybrid mode)
- Hydraulic Mast
- Day/Night sensor
LED floodlights placed on special brackets to point them in any direction.
PRO is the only lighting tower technology to offer altogether:
- the future, with 100% battery-powered supply;
- the present, with the latest generation hybrid power supply;
- the tradition, with low consumption diesel engine.
All in one model.
