Discover the CUBE HYPER light tower with Hyper® LED Technology by Generac Mobile®. Illuminate 360° with adjustable floodlights and anti-glare options. Powered by a Kubota diesel engine, it boasts 184,000 lumens, 243 hrs runtime, and low 58dB noise. With hydraulic mast, digital controller, top accessibility, bolted frame, and liquid containment tank, it’s the ultimate choice for reliability and durability.
Specifications
| Cube Hyper K2 | Technical Data |
|---|---|
| Minimum dimensions (L x W x H) | 1230 x 1160 x 2405 mm |
| Maximum dimensions (L x W x H) | 1790 x 1735 x 8400 mm |
| Dry weight | 1070 Kg |
| Lifting system | Hydraulic |
| Mast rotation | 340o |
| Lamps Power | 4 x 320 W |
| Lamps type | LED (Hyper) |
| Total Lumen | 184000 Lm |
| Illuminated area | 4500 m2 |
| Engine | Kubota Z482 |
| Engine cooling | Liquid |
| Cylinders (q.ty) | 2 |
| Engine speed (50/60 Hz) | 1500 / 1800 rpm |
| Liquid containment (110%) | ✓ |
| Alternator (kVA/V/Hz) | 3.5/230/50 – 4.2/240/60 |
| Outlet socket (kVA/V/Hz) | 2/230/50 – 2/240/60 |
| Inlet plug (AN/Hz) | 16/230/50 – 16/240/60 |
| Avg. sound pressure | 58 dB(A)@ 7m |
| Wind speed resistance | 110 km/h |
| Tank capacity | 170 I |
| Running time | 243 h |
Description

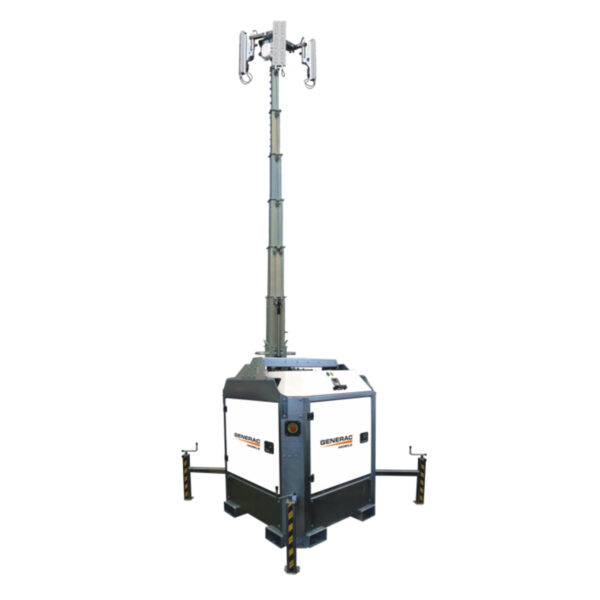

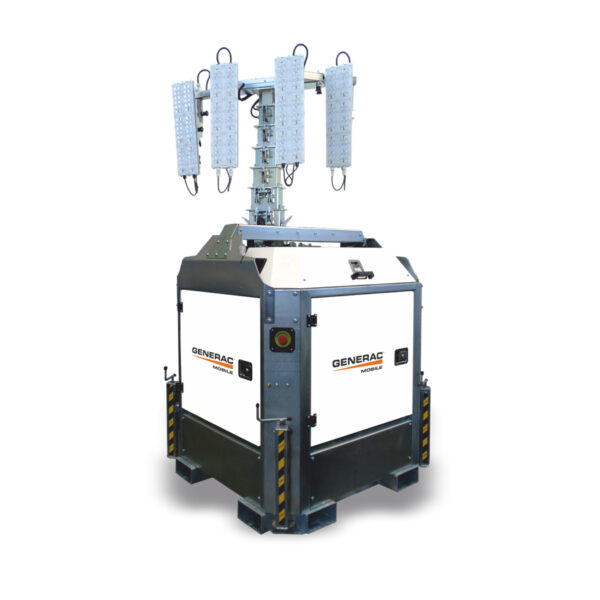

CUBE HYPER light tower
The special CUBE HYPER version by Generac Mobile® is a lighting tower equipped with the new Hyper® LED Technology allowing the operator to point the floodlights in every direction, to provide 360° illumination. Also available with anti-glare floodlights.
- Diesel (Kubota) 2cyl
- 4 x 320W lamps LED (Hyper)
- 184,000 lumens
- 243 hrs run time
- Avg Sound Pressure 58dB @ 7m
- 1070kg
- Hydraulic Mast
- Day/Night sensor
Digital controller
The CUBE Hyper is equipped with a digital controller specifically studied to manage every function of the light tower for the best ease of use.
Top accessibility
5 wide doors for complete access to the technical area.
Bolted frame
A bolted frame for a much better resistance to vibrations, wear, and rust. It offers the best reliability and durability in the industry.
Liquid containment tank
A liquid containment tank to avoid any risk of leakages on the ground.
Safe locking stabilizers
New adjustable locking system embedded in the machine frame. A step forward from competition standard locking system. No more removable external lockers: when CUBE HYPER doors are locked, it’s impossible to change position or even remove the stabilizer.
