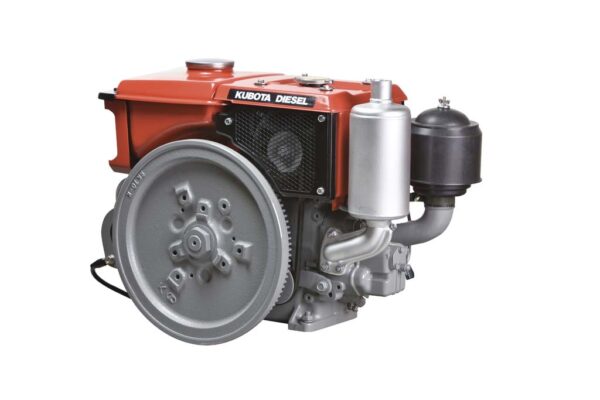

The Kubota RK70 Series features a range of horizontal, water-cooled, four cycle diesel engines suited to a wide range of applications. From remote pumping stations in outback Queensland to pressure washers and agricultural equipment, the RK Series is a rugged and reliable power solution that will stand the test of time.
Specifications
Dimension
| Main Features | RK70 |
|---|---|
| Cooling Type | Water Cooled |
| Orientation | Horizontal |
| Fuel Type | Diesel |
| Number of Cylinders | 1 |
| Stroke | 75mm |
| Displacement | 376 cc |
| Combustion System | Three Vortex |
| Intake System | Naturally Aspirated |
| Manual Crank Handle | ✔ |
| Starting System | Electric |
| Speed Type | Variable |
| Fuel Capacity | 7.5 lt |
Description
Equipped with Kubota’s TVC system
Indirect injection engines equipped with Kubota’s TVC system for greater power output and more steady, quiet operation.
Built-in balancer
Built-in balancer suppresses noise and vibration caused by the piston.
Efficient combustion system
Highly efficient combustion system prevents heat loss and maximises performance.
With manual or electric start option
Complete with a manual or electric start option with a backup manual crank start.
Superior fuel economy
Highly efficient diesel engines with superior fuel economy.
Renowned global brand
Global brand renowned for its high performing and reliable engines.
| Main Features | RK70 |
|---|---|
| Net Intermittent Power | 5.22 kw (7.0 hp) |
| Net Rated Speed | 2400 rpm |
| Net Continuous Speed | 2200 rpm |
| Bore x Stroke (mm) | 80.0 x 75.0 |
| Total Displacement cm3 | 376 |
| Maximum Output (kW/rpm(HP/rpm)) | 5.22/2400 7.0/2400 |
Applications
- Agriculture: In farming operations, the RK70 powers a range of machinery including tractors, irrigation pumps, and harvesters, ensuring efficient performance in agricultural activities such as plowing, planting, and harvesting.
- Construction: The RK70 engine is commonly found in compact excavators, skid steer loaders, and mini-dumpers on construction sites. Its robust performance enables these machines to handle tasks such as digging, lifting, and material handling with ease.
- Power Generation: Used in generator sets for standby or prime power applications, the RK70 engine provides reliable backup power for residential, commercial, and industrial settings, ensuring uninterrupted operations during power outages or in remote locations.
- Marine: Installed in small boats and auxiliary power units, the RK70 engine serves as a dependable propulsion system, powering vessels for fishing, leisure, or commercial purposes, as well as providing auxiliary power for onboard equipment.
- Industrial: In industrial settings, the RK70 engine is employed in various equipment such as compressors, pumps, and power units, contributing to the efficient operation of manufacturing processes, material handling, and other industrial applications.
