Introducing the V20 Hyper Light Tower – your ultimate lighting solution. With 4 super-efficient LED floodlights, it offers over 140 hours of illumination and impressively low noise levels at just 58 dB(A). Plus, the exclusive Hyper® LED Technology allows versatile lighting in any direction.
Specifications
| Â Cube Hyper K2 | Technical Data |
|---|---|
| Minimum dimensions (L x W x H) | 2250 x 1400 x 2436 mm |
| Maximum dimensions (L x W x H) | 2640 x 1900 x 8500 mm |
| Dry weight | 980 Kg |
| Lifting system | Hydraulic |
| Mast rotation | 340o |
| Lamps Power | 4 x 320 W |
| Lamps type | LED (Hyper) |
| Total Lumen | 184000 Lm |
| Illuminated area | 4500 m2 |
| Engine | Kubota Z482 |
| Engine cooling | Liquid |
| Cylinders (q.ty) | 2 |
| Engine speed (50/60 Hz) | 1500 / 1800 rpm |
| Liquid containment (110%) | ✓ |
| Alternator (kVA/V/Hz) | 5/220/50 – 5/240/60 |
| Outlet socket (kVA/V/Hz) | 2/220/50 – 2/240/60 |
| Inlet plug (AN/Hz) | 16/220/50 – 16/240/60 |
| Avg. sound pressure | 58 dB(A)@ 7m |
| Wind speed resistance | 110 km/h |
| Tank capacity | 100 I |
| Running time | 143 h |
Description

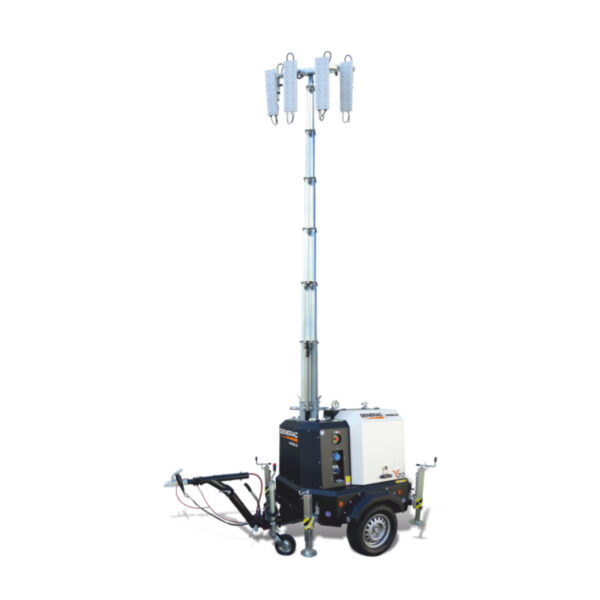

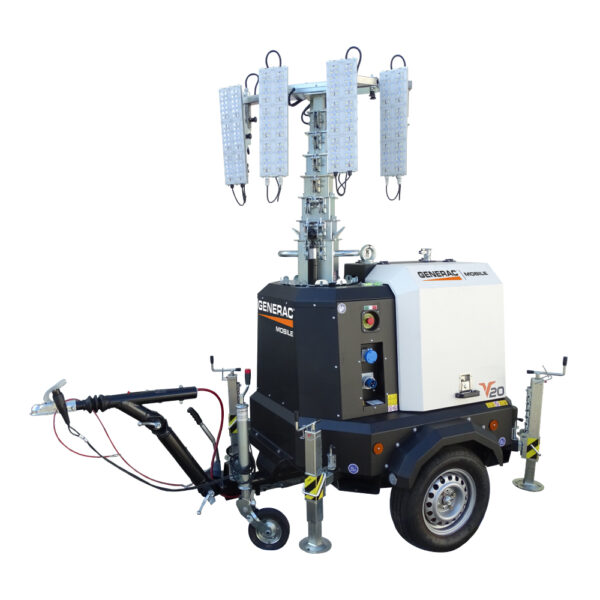

V20 Hyper Light Tower
The V20 Hyper is a new mobile lighting tower equipped with 4 x320W highly efficient floodlights. It provides more than 140 hours of run time and delivers one of the lowest sound pressure levels in the industry- only 58 dB(A) at 7m. The exclusive version, with Hyper® LED Technology, allows the operator to point the floodlights in every direction to provide illumination up to 360° and is available with anti-glare options.
- Diesel (Kubota) 2cyl
- 4 x 320W lamps LED (Hyper)
- 184,000 lumens
- 143 hrs run time
- Avg Sound Pressure 58dB @ 7m
- 980kg
- Hydraulic Mast
- Day/Night sensor
GTL01 digital controller
The V20 HYPER is equipped with a GTL01 digital controller specifically studied to manage every function of the light tower for the best ease of use.
Top accessibility
3 doors for wider access. 2 compass-top doors with a «wing» shape provide complete access to the engine for safe and convenient maintenance. 1 back door allows access to the digital control panel.
The lowest noise level!
Innovation means also decreasing the noise level! The V20 light tower emits only 58 dB(A) @ 7 meters.
Long running time
Thanks to the V20 HYPER’s fuel-saving features such as the small engine and the LED lamps, this model can run up to 143 hours without refueling.
Double power
You can connect a V20 HYPER to another V20 HYPER and run two lighting towers with only one engine.
