Discover the Cube Pro Light Tower ā the ‘ALL IN ONE’ lighting solution by Generac MobileĀ®. Packed with innovations and technologies developed over 25 years, it’s a versatile choice for your lighting needs. With options for battery, hybrid, and diesel power, Cube Pro is the complete solution for present and future requirements. Get global connectivity, adjustable LED floodlights, and anti-glare options.
Specifications
TECHNICAL DATA | ||||
Min. dimensions* (mm) | 1230 x 1150 x 2383 mm | |||
Max. dimensions* (mm) | 1793 x 1737 x 8100 mm | |||
Dry weight* (kg) | 1175 Kg | |||
Engine Model | Kubota Z482 | |||
Cylinders (q.ty) | 2 | |||
Engine cooling | Liquid | |||
Engine speed (50/60hz) | 1500/ 1800 rpm | |||
Avg. sound pressure | 0 – 58 | |||
Dimmer switch Light intensity | 25% | 50% | 75% | 100% |
Max. lamps power (W) | 4 x 60W | 4 x 120W | 4 x 180W | 4 x 240W |
Lamps type | G4 LED | G4 LED | G4 LED | G4 LED |
Max. total lumen (Lm) | 41040 Lm | 76184 Lm | 107668 Lm | 139200 Lm |
Max. illuminated area (m2) | 1500 | 2200 | 2700 | 3100 |
Battery recharging time (h) | 6:11 | 5:18 | 5:09 | 4:29 |
Running time – Battery mode (h) | 19:46 | 10:07 | 5:11 | 3:45 |
Running time – Generator mode (h) | 275 | 252 | 224 | 208 |
Running time – Hybrid mode (h) | 785 | 504 | 337 | 300 |
Mast lifting system | Hydraulic | |||
Mast rotation (Ā°) | 340Ā° | |||
Wind speed resistance (km/h) | 110 | |||
Alternator | 5/220/50 – 5/240/60 | |||
CEE inlet plug (external power) | ā | |||
Multipin inlet plug (solar kit) | ā | |||
Tank capacity (liters) | 160 Liters | |||
Liquid containment tank (110%) | ā |
Description

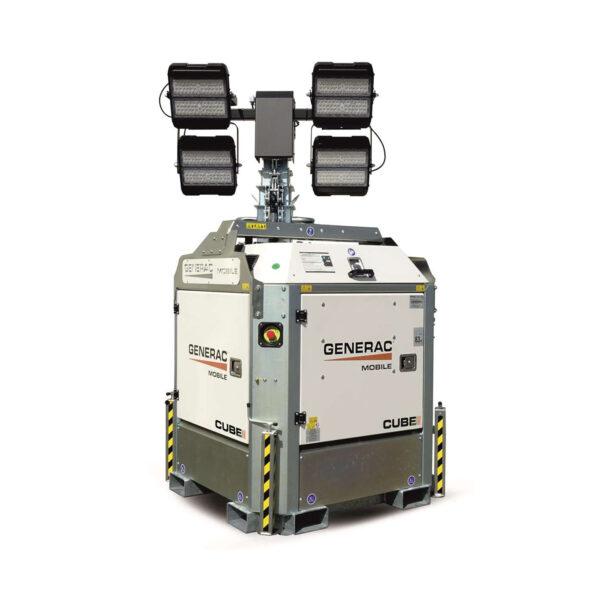

Cube Pro light tower
CUBE PRO is not just a new lighting tower, but the authentic and unique “ALL IN ONE” product. It embodies all the innovations and new technologies that Generac MobileĀ® has developed in 25 years at the top of the industry as a manufacturer. Generac MobileĀ® has brought together all the Rental needs, in one single product.
CUBE PRO has been designed following the most actual sustainability path and offers global connectivity for remote control.
- Diesel (Kubota) 2cyl
- Battery AGM with Victron Inverter
- 4 x 240w lamps LED (Hyper)
- 139,200 lumens
- Light Source options of 25% 50% 75% 100%
- Cube PRO 785 hrs run time (25% light output Hybrid mode)

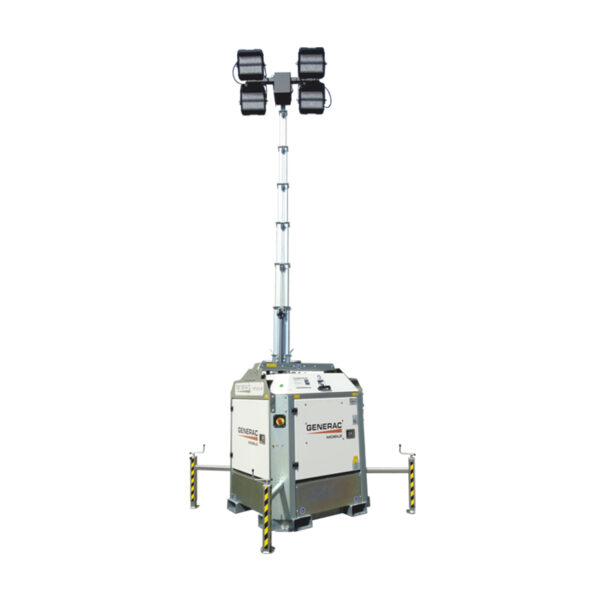

- Hydraulic Mast
- Day/Night sensor
AGM Battery
CUBE PRO AGM is equipped with an AGM battery pack, a traditional battery technology, cost-effective and ideal for use in cold environments.
ALL IN ONE
CUBE PRO is truly the Complete Solution, the only one to offer altogether: the future, with 100% battery-powered supply; the present, with the latest generation Generac MobileĀ® hybrid power supply; the tradition, with low consumption diesel engines. All in one model.
Generac LED floodlights with adjustable light power
4×240 W high-efficiency New G4 LED floodlights designed by Generac MobileĀ®. Special version with adjustable light power output from 25% to 100%.
Anti-glare floodlights
The floodlights can be equipped with optional antiglare shells to create a soft, ambient light for use on special applications like roadworks, airports and where light pollution must be kept to a minimum.
Control panel
Control panel with digital controller and easy Function Selector:
- Off
- Manual mode
- Darkness sensor mode
- Timer mode
Plug-in system
Generac MobileĀ® can provide customers with two external accessories:
- I-Extender PRO -A stand-alone, stackable, battery pack with 25 kWh capacity that will make CUBE PRO runs up to 40 hours in Battery mode. Standard: CEE 16A outlet socket.
- Solar kit PRO -A stackable solar panel kit with 3×300 Wp sliding solar panels able to recharge the CUBE PRO battery, reducing the use of the generator or other power sources. Multipin outlet socket
The operator can easily connect these devices to the CUBE PRO to the inlet sockets installed as default on the machine.
It’s also possible to connect the unit to the Mains through the inlet socket (standard CEE 16A).
Transportability
The squared shape allows to load up to 22 units on a 13 meters truck, and up to 18 units on a 40′ container.
PRO is the only lighting tower technology to offer altogether:
- the future, with 100% battery-powered supply;
- the present, with the latest generation hybrid power supply;
- the tradition, with low consumption diesel engine.
All in one model.
